How to Design a Multiplex Immunofluorescence Panel

Design a multiplex immunofluorescence panel backwards from your research question: marker budgets, singleplex validation checkpoints and cost per target.

TerryDR

A multiplex immunofluorescence panel should be designed backwards from the question you intend to answer, not forwards from a marker catalogue. Before you order a single antibody, decide which four kinds of information your study must support: where the cell sits, what it is, what state it is in, and how it relates to its neighbours. Every channel you add should buy one of those. A marker that changes no downstream conclusion is cost without inference. The practical consequence is that the right panel size falls out of the analysis, and channel budget becomes a design constraint you plan against rather than a limit you discover later.

Multiplex immunofluorescence tissue section showing several pseudocolor marker channels revealing distinct immune and tumor cell populations

Start from the question, not the marker list

Most panels fail at the first step. They begin with a supplier catalogue, or with copying the panel from a paper that answered a different question, and only later work out what the resulting images can support. The alternative is to write the question down first, then the metric, then the cells that metric requires, and only then the markers that identify those cells.

These are genuinely different questions, and they pull the panel in different directions. “How many CD8-positive cells are in the tumour core, and how far are they from the tumour boundary” is a location question. It needs a tumour or stromal compartment marker, a lineage marker, and a segmentation you can trust. “Are those CD8-positive cells exhausted” is a state question, and it needs markers the location question never asked for. Adding one channel to answer the second question does not compromise the first one, but it changes the validation burden, the acquisition time, and the round-by-round quality control you will have to run.

Two habits make this concrete. First, state the tissue compartment explicitly, because markers are only interpreted relative to a compartment: a marker that is “positive” in tumour and stroma means different things in each, and the same panel may need different thresholds per compartment. Second, write down which questions you are deliberately not answering. A panel that is designed to answer four questions reliably will beat a panel that is designed to answer nine partially, and the second one usually fails at the imaging stage rather than at the analysis stage.

The four information dimensions your panel must answer

Most useful way to structure the exercise is to work through four information dimensions, and to ask for each one what question it must answer, what evidence has to back it, and what the minimum marker set looks like. The point is not to reach a specific number. It is to notice, before the experiment, which dimension you have quietly left empty.

Information dimension The question it must answer Evidence to check Minimum marker set
Tissue location Is the cell in tumour, stroma, a vessel, or elsewhere? Compartment structure and a compartment marker suited to the cancer type One or two compartment markers
Cell identity Which lineage is it, and can it be subdivided? A lineage marker combination, signal localisation, morphology, and the positive-call rule Two or three lineage markers
Functional state Is there evidence consistent with proliferation, effector activity, or exhaustion? A marker combination matching the hypothesis, plus the validation that combination needs Two to four state markers, and one marker never settles a state on its own
Spatial relation Who is near whom, and how is the local environment organised? Reliable segmentation, cell coordinates, compartment boundaries, and an explicit distance rule Reuses the layers above, plus the compartment marker

Read this table as a dependency graph rather than a shopping list. Spatial relation is not an independent layer that needs its own antibodies; it needs good segmentation and reliable coordinates, which means it inherits every weakness of the layers beneath it. That is why compartment definition sits at the top: it is the cheapest layer in terms of channels and the most expensive one in terms of everything that depends on it. Cutting the location layer to save a single channel is a false economy, because every distance and neighbourhood metric downstream is then measured against an undefined boundary.

A second caution applies to the state layer. A single exhaustion or activation marker can only ever be a clue, not a verdict. Markers of this family are strongly correlated with each other and with handling, and a single positive signal is consistent with several different biological states. If the state is what your study is about, treat the marker combination and the accompanying validation as the deliverable, not as a detail to be sorted out during analysis.

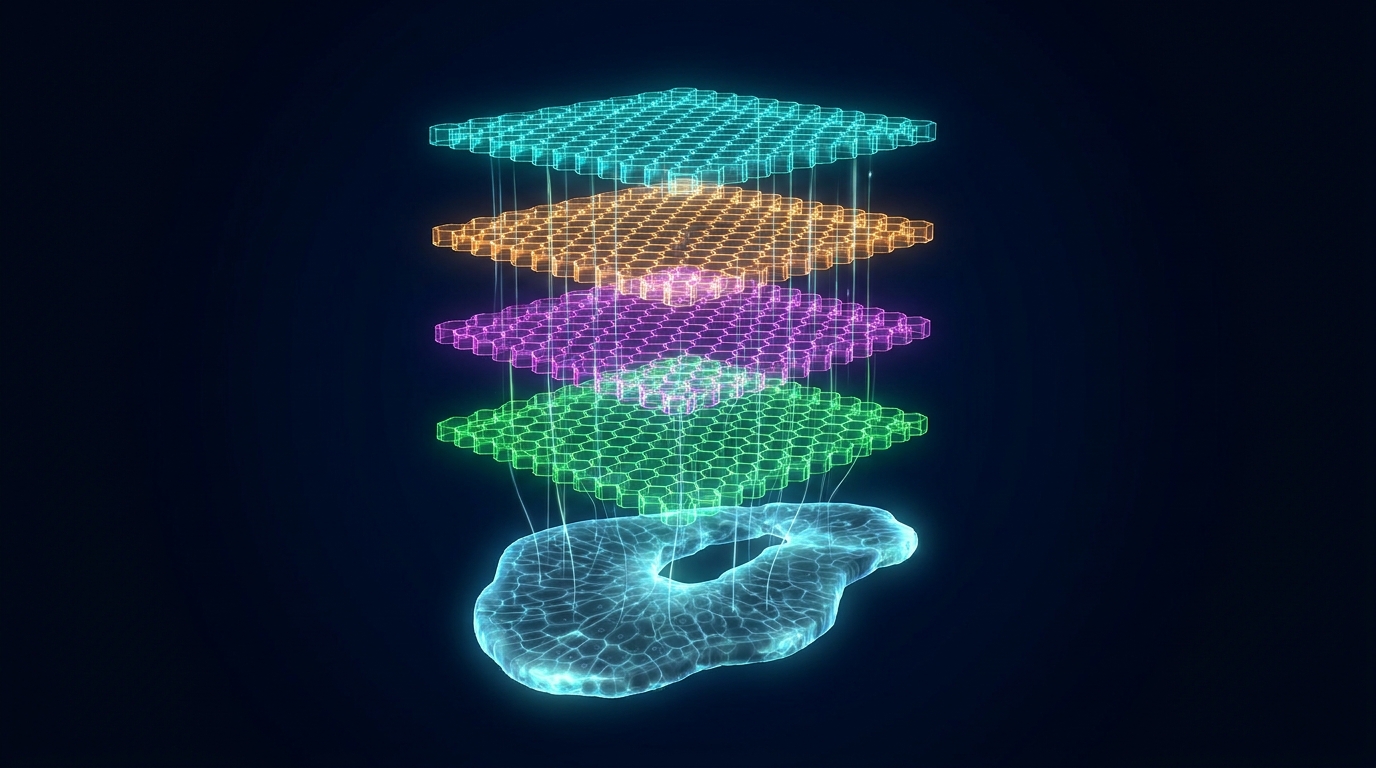

Four stacked information layers of tissue location, cell identity, functional state and spatial relation in panel design

Budget channels before you order antibodies

Channels are the scarcest resource in multiplex immunofluorescence, and the budget is usually set by the instrument and the detection chemistry rather than by biology. The useful move is to fix the budget first and then decide what each channel buys. Below is a rough planning frame, not a specification; the numbers that matter for your platform come from your own validation.

Channel budget What it can realistically cover What you should protect Downgrade ladder when it is not enough
Three to five Location plus broad identity The compartment markers State questions are recorded as not answerable rather than approximated
Six to ten Location, identity, and some state markers The compartment markers and the lineage markers Spatial questions are answered at region level instead of cell level
Twelve to twenty All four dimensions with room for refinement The compartment markers State markers are reduced to one representative per pathway
More than twenty All four dimensions plus pathway resolution The compartment markers Requires a high-plex platform, and the round-to-round registration and quality control budget has to be planned with it

The ladder matters more than the numbers, because it is what you will actually use. When the panel exceeds the budget, the order of sacrifice is usually wrong. Cutting a redundant state marker is cheap. Cutting the compartment marker is expensive, because it converts every spatial metric into a relative statement without a reference. And if the question cannot be answered at the reduced plex, the honest move is to change the question rather than to report a partial answer as if it were complete.

Validate singleplex before you commit the whole panel

Singleplex validation is where most multiplex panels are won or lost, and the central rule is short: an antibody that works on its own may still fail in combination. Shared host species, shared processing, epitope damage from repeated stripping and antigen retrieval, and cross-reactivity that only appears when two signals overlap in the same tissue region all break that rule in practice. A merged image that looks clean is not evidence that each channel is quantifiable, because the eye forgives a great deal when colours are blended.

Checkpoint How to check it What counts as a pass
Localisation Look at the single-plex slide for subcellular distribution Signal sits where the biology predicts, not as a diffuse haze
Dynamic range Run a low and a high abundance target on the same slide The weak target is detectable and the strong target is not saturating
Processing compatibility Validate antibodies singly, then combine them and repeat the check Combination matches the single-plex result for localisation and range
Round survival Compare a weak target stained alone against the same target after several rounds The weak target does not collapse after repeated rounds
Control set Assemble unstained, single-stain, and process controls Every channel has a matched reference, and process controls exist for each round

The round-survival checkpoint deserves particular attention because it is the one most often skipped and the one that surfaces late, after the whole panel has been run. A target that is weak to begin with can lose most of its signal across several cycles, and by the time you notice, the samples are already stained and the option is to run them again.

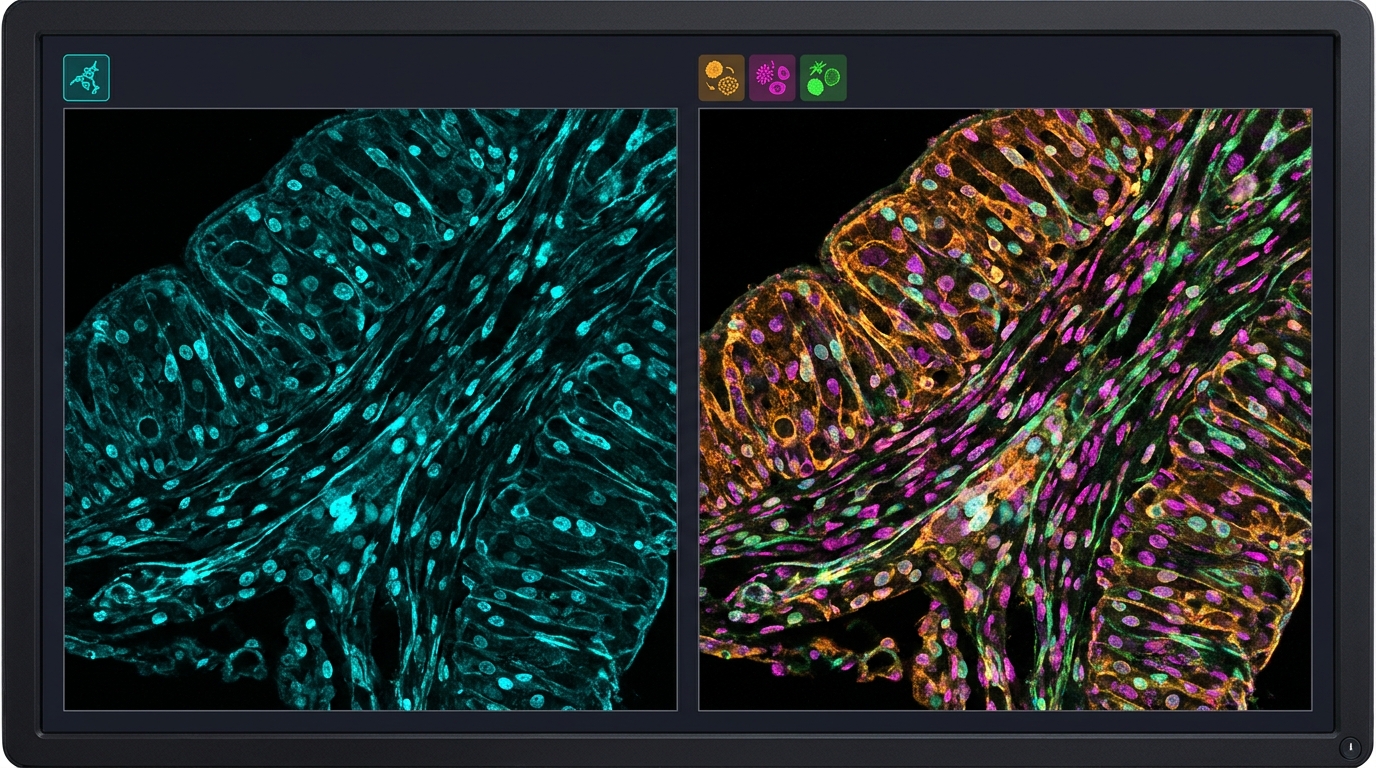

Side by side singleplex and multiplex immunofluorescence sections showing single channel clarity against overlapping fluorophores

Match the detection chemistry to the panel

The detection chemistry determines how many channels you can realistically run and, more importantly, what can go wrong while you run them. Direct labelling is the simplest route and the most transparent, but it limits you to targets that are bright enough to see without amplification. Tyramide signal amplification deposits fluorescent tyramide locally where an enzyme sits, which raises detectability for weaker targets; it does not, however, improve antibody specificity, and non-specific binding is amplified along with the intended signal. Sequential or cyclic imaging raises the channel ceiling again, at the cost of requiring that each previous round be removed, inactivated, or otherwise isolated before the next one, and of requiring that the rounds be registered back into a common coordinate frame.

Dimension Direct labelling Tyramide amplification Cyclic or sequential imaging
Signal Directly labelled fluorophore, limited brightness Local deposition raises detectability Each round imaged separately, then integrated digitally
Channel ceiling Low Moderate High, with multi-round expansion
Between-round handling None Antibody removal plus fluorescence handling Each round needs removal or inactivation of the previous signal
Characteristic risks Insensitivity to low-abundance targets Carry-over, spectral bleed-through, amplified non-specific binding Registration error and cumulative tissue damage across rounds
Best fit Few targets with strong signal Moderate plex where sensitivity matters High plex, or rebuilding a multiplex image from repeated stains on one slide

When you evaluate instruments or platforms for a panel, this table is the right sheet to have open, because each chemistry converts into a different set of validation checkpoints and a different failure mode. If your planned panel runs cyclically, registration quality between rounds stops being an imaging detail and becomes part of the measurement itself, and it needs to be budgeted for rather than discovered during the first real dataset. TerryDR’s TR-ASTRA Flow is one current approach to that problem, combining cyclic staining with a five-channel slide scanner in a single closed workflow, and its capability to extend to higher plex is worth evaluating against the incremental validation cost of each extra round.

For the parts of your panel that only need one marker, a standardised automated IHC stainer is a useful control: it gives you repeatable single-plex slides on the same footing as the multiplex run, which is exactly the comparison you need when you are deciding whether a weak signal is a staining problem or an antigen problem.

What panel changes force a re-validation

Panels are living documents. Someone swaps a clone because the original lot failed, someone moves a target to a different channel to free up a fluorophore, someone changes the retrieval conditions to improve one marker and quietly degrades two others. Each of those changes invalidates a different part of the validation record, and the group that cannot say which part was invalidated is the group that ends up re-validating the whole panel from scratch.

What changed What must be re-verified What the record should contain
Antibody clone Localisation and dynamic range A localisation and threshold record for the new clone
Antibody concentration Dynamic range and background A titration record
Fluorophore or channel assignment Spectral bleed-through for every affected pair An updated spillover matrix
A marker added or removed Compatibility of the full combination and round survival A revised panel version with its validation record
Antigen retrieval conditions Localisation and dynamic range for every marker A condition comparison record
Tissue type or cancer type Every marker plus compartment definition A validation record for the new specimen type

Keeping that table is cheap. The expensive alternative is discovering, halfway through a study, that a single concentration change three months ago silently altered one channel, and having no way to establish which results were affected.

Estimate cost per target before you commit

Almost no one publishes this, and it is one of the most useful numbers you can produce before committing to a panel. The useful version is not a quotation. It is a method for estimating what one additional target actually costs, because the marginal cost of a marker is far larger than the price of the antibody.

Start with the direct cost: the antibody, the reporter, and the controls that travel with it, multiplied by the number of slides your design consumes. Then add the validation cost, which is usually the larger term. Each new marker needs at least one single-plex slide, a combination re-check, a place in the round or channel plan, and a corresponding entry in the quality control record. Multiply by the number of replicate and control slides the design needs, and by the number of optimisation iterations you should assume, which for any marker with an awkward epitope is more than one.

Add the operational cost that nobody puts in the spreadsheet: the acquisition and analysis time added by one more channel, the extra registration work if the panel runs cyclically, and the analysis complexity of one more marker in the phenotype definition. The result is a cost per target that typically runs at a multiple of the antibody price, and a clear reason to defend the channel budget in panel discussions rather than treat it as fixed.

This is also where the boundary between a panel and a service matters. Some groups build the panel, some hand the project to a team that runs it end to end, and the honest way to compare the two is on cost per interpretable target and on how much of the validation trail survives, rather than on the antibody list. TerryDR publishes no prices on this site and quotes per project; the mIF image analysis service is scoped the same way, and what we do commit to publicly is that the panel, the acquisition parameters, the controls, and the per-round original images are retained so that results can be re-checked later. That kind of record is the actual deliverable when a panel is reused across a study.

Five panel-design mistakes that survive into the analysis

Most panel failures are not visible until someone tries to analyse the images, which is why they are worth naming directly. First, designing for the method rather than the question — choosing the platform, then fitting the science into the channels that happen to be available. Second, assuming single-plex validation transfers unchanged into the multiplex combination, which is the assumption the validation checkpoints are designed to break. Third, cutting the compartment layer to save a channel, which quietly converts every spatial metric into a statement without a reference point.

Fourth, treating one marker as a functional state, when a single positive signal cannot separate proliferation, effector activity, suppression, and exhaustion from one another. Fifth, having no change log. A panel edited in place looks identical to a panel that was designed carefully and then properly validated, and nothing in the images tells the two apart. A versioned panel record, with the validation status of each marker attached, is the cheapest protection available against that ambiguity.

A workable sequence is short: fix the question, fix the compartment, list the minimum marker set for each information dimension, assign channels to that set, validate single-plex, then validate the combination and the rounds, and finally record the version with its acceptance criteria attached. Each step is cheap compared with the step that follows it. Patho Axis sets out the same sequence in more detail for teams comparing solutions for research labs and pharma, and the QuPath plugins cover the analysis stages that follow the panel is fixed.

A panel specification is only the first stage. The panel you settle on still has to survive staining quality control before a single slide is trusted, which is covered in TSA Multiplex Immunofluorescence QC Checklist.

Frequently Asked Questions

What is the right number of markers for a multiplex immunofluorescence panel?

The right number is whatever your questions require and your platform can defend, and it is usually smaller than people expect. Most panels settle between four and twelve markers because each additional channel adds single-plex validation, combination checks, acquisition time, and registration work. If you cannot say which conclusion each added marker changes, it is not earning its place in the panel.

Do I need a separate control slide for every marker?

You need enough controls to attribute every signal you report. In practice that means unstained material, a single-stain reference for each channel, and process controls that show what each round of staining does on its own. You can consolidate slides, but you cannot skip the reference for a channel and still be able to claim that the signal in that channel is what you think it is.

Can antibodies from the same host species be used in one multiplex panel?

Sometimes, but it is one of the most common sources of panel failure. When two primary antibodies come from the same host, the secondary reagent cannot reliably tell them apart, and the usual workarounds each add complexity of their own. Many groups avoid it entirely by choosing antibodies from different hosts, or by using sequential amplification chemistries that let them remove one detection complex before adding the next.

How should autofluorescence be handled when designing a multiplex panel?

Treat it as a design constraint rather than a problem to solve at the end, because it eats channel budget and dynamic range. Some tissue types, particularly heavily vascularised or fibrotic specimens, are bright enough that a fluorophore has to be reserved for background measurement rather than for a target. The decision you make early is whether to correct for it in analysis or to remove it in staining, and both are legitimate but they have different costs.

What does it take to get a new multiplex panel validated?

Think in weeks rather than days, and in slides rather than hours. The sequence is single-plex validation of every antibody, then combination checks for compatibility, then a round-survival check if the panel runs sequentially or cyclically, and finally a documented panel version with acceptance criteria. Markers with awkward epitopes can multiply that timeline, so validating the hardest target first is usually the cheapest scheduling decision you can make.
